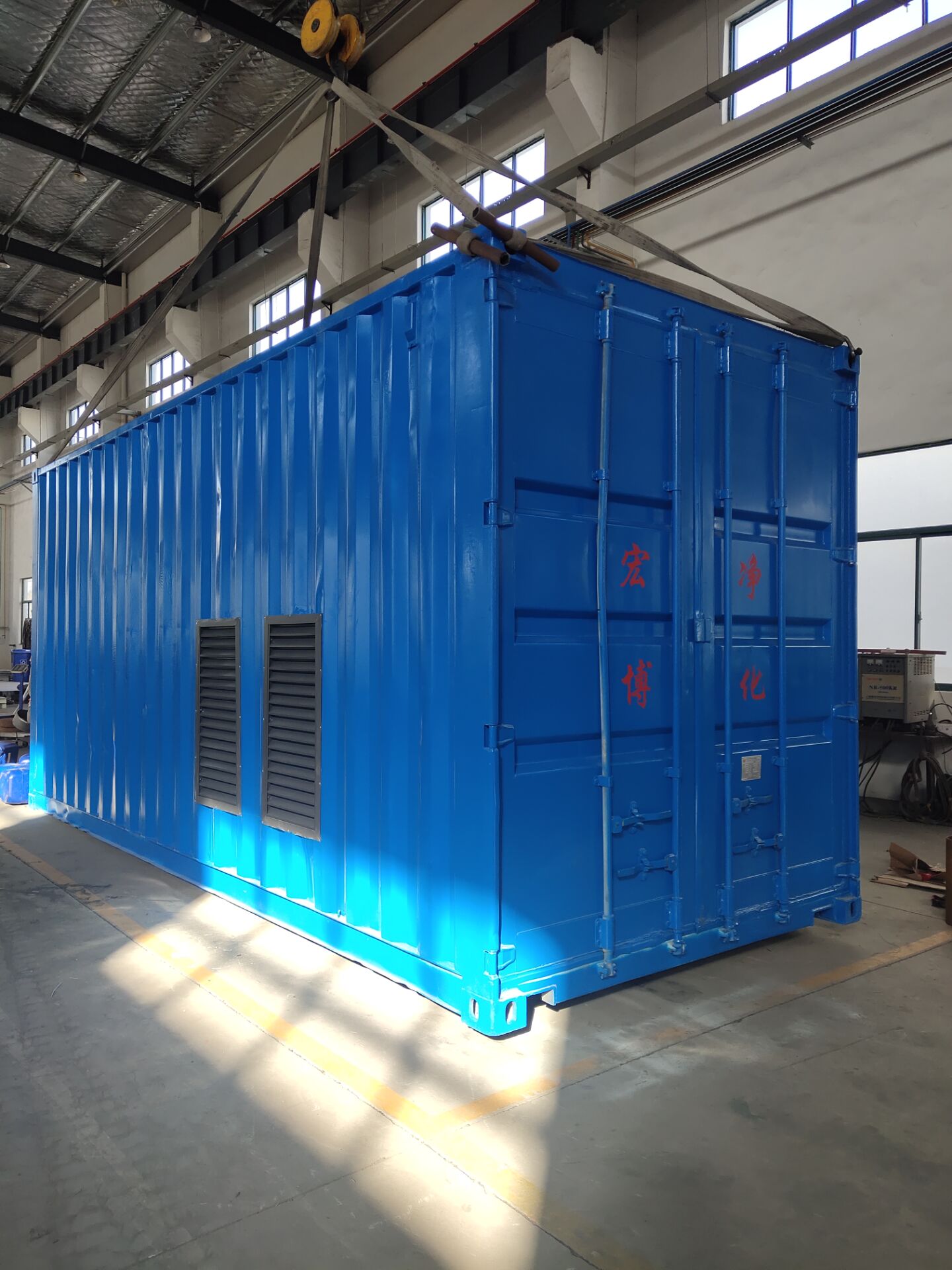

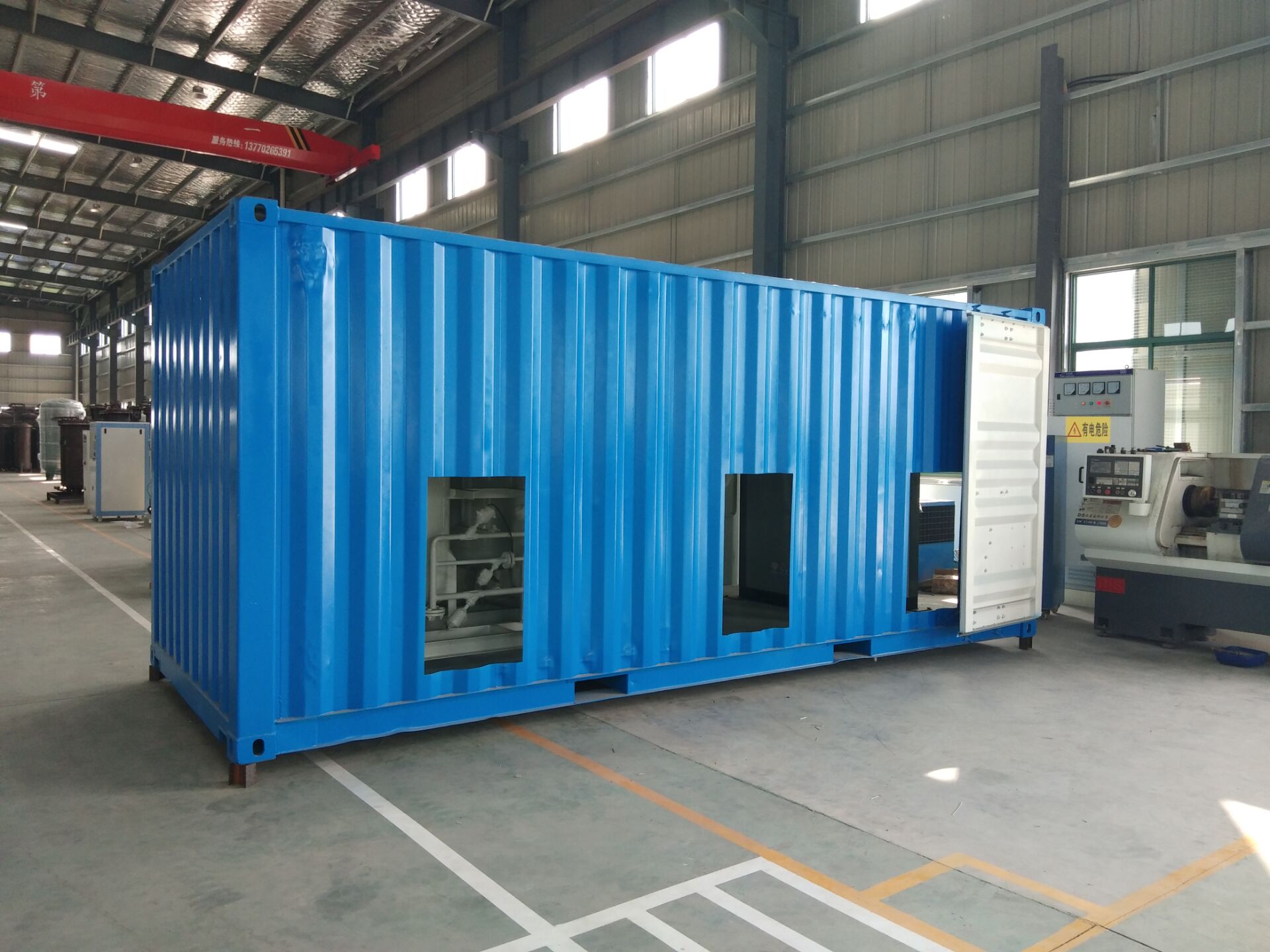

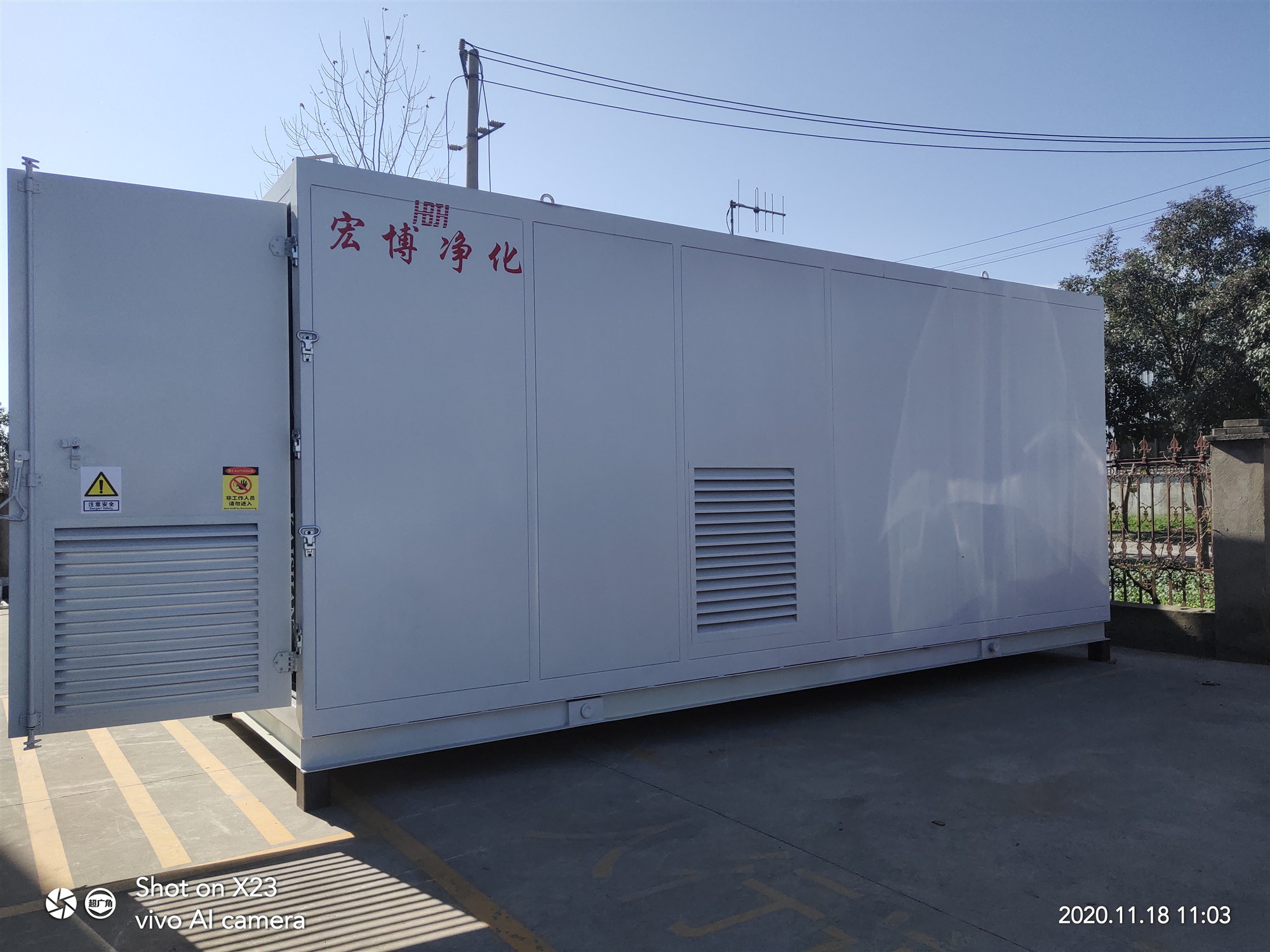

Shelter /Container-type PSA Oxygen Generator
PRODUCT PARAMETER
Recently, Hongbo officially launched a new product of modular oxygen generator + ozone generator shelter (container), which once again brings innovative achievements to the industry and users! With the manufacturing process, product performance has become a bright landscape.
1. Advantages of modular shelter (container):
A. There is no need to build a separate plant. Only the cement flat ground provided by the owner can be used on the ground.
B. Just connect the power supply and finally export it, and then it can be put into operation.
C. Fast supply (available in stock, the slowest delivery is 10 days)! Quick installation! Easy installation!
D. It is easy to move and can be replaced on the installation site after being hoisted to the truck!

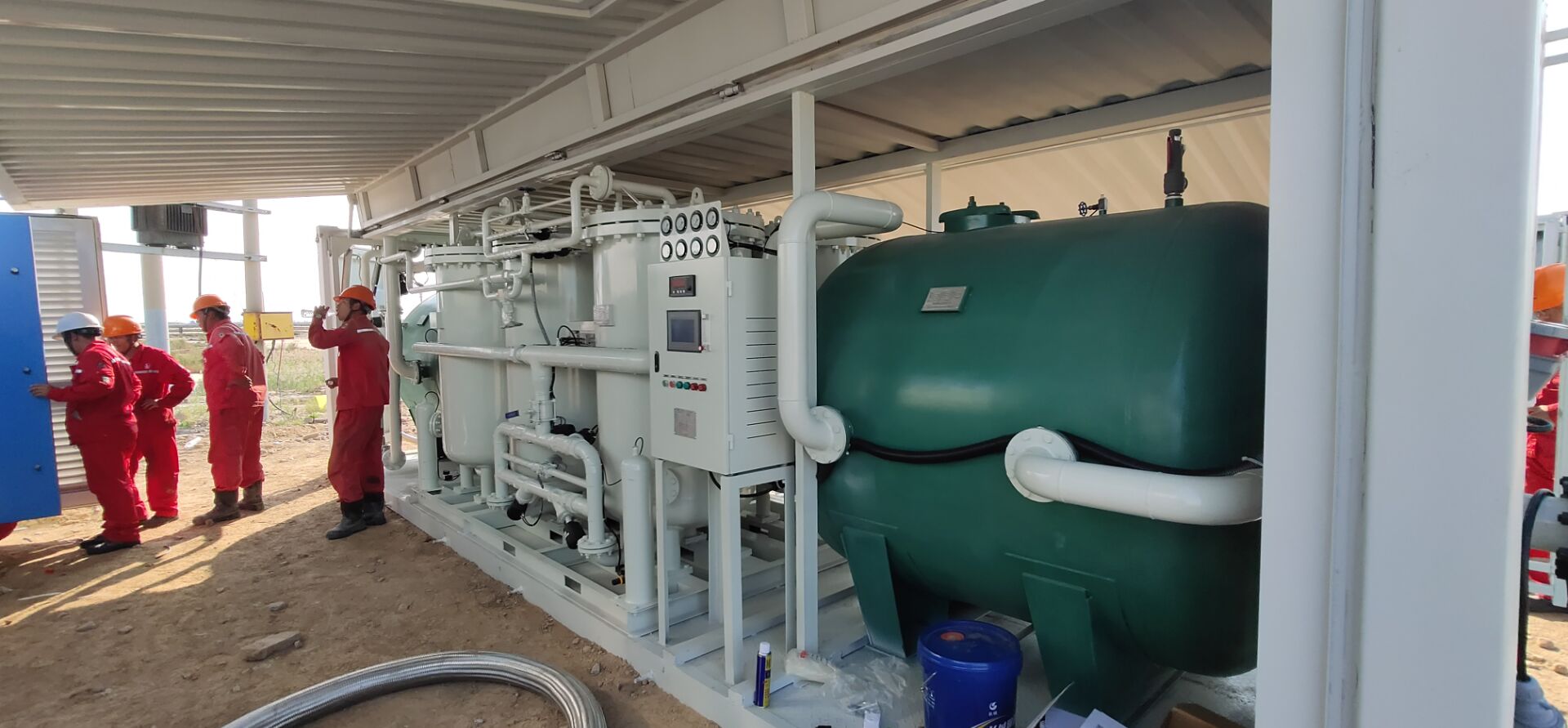

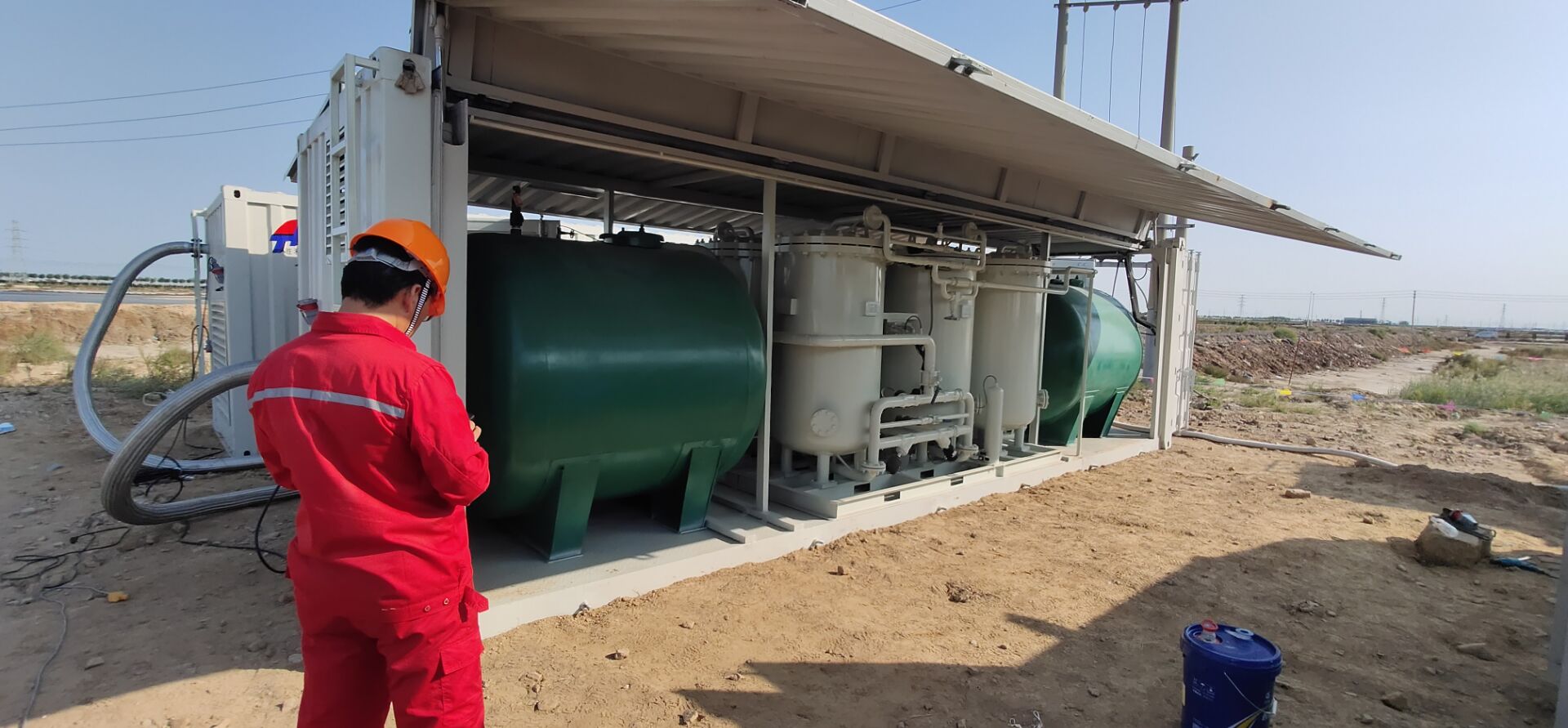

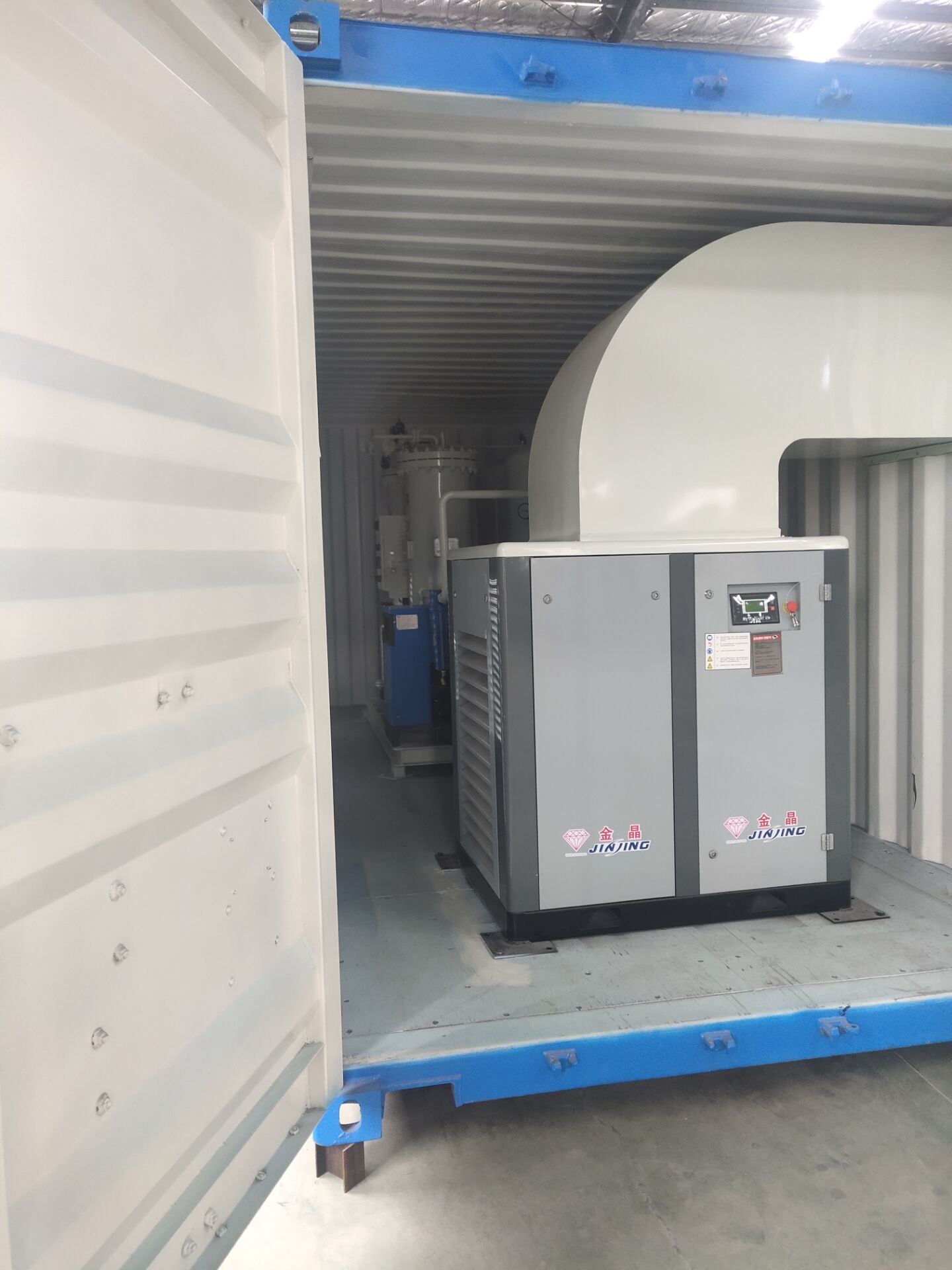

E. Including: air compressor, air storage tank, compressed air post-treatment equipment, PSA oxygen generator, oxygen process tank, plate ozone generator (optional), chiller (optional), 1.5p air conditioner (optional), oxygen leakage alarm (optional), ozone leakage alarm (optional)
F. You can also select only the shelter of the oxygen generator, excluding the above options.
Ozone generator supporting manufacturers, or the final owner!
3. Parameter table of modular shelter (container)
Model explanation: hbfo93-8-1f, Hb stands for Hongbo company abbreviation; Fo stands for oxygen enriched PSA oxygen generator; 93 represents purity 93% ± 3%; 8 represents: oxygen production 8nm3 / h; 1 represents the ozone production capacity of the ozone generator 1kg / h, and f represents the shelter / container structure
Model | Ozone production | Oxygen purity | Oxygen flow | Overall dimension of shelter | weight | Rated power | Operating power | Final ozone outlet size | Size of occupied platform |
HBF093-8-1F | 1kg/h | 93%±3% | 8Nm3/h | 5m*2.4m*2.61m*1 | 约6T | 31.31KW | 28.31KW | G3/4”或DN20 | 7.4m*3.5m |
HBF093-16-2F | 2kg/h | 93%±3% | 16Nm3/h | 5.5m*2.4m*2.61m*1 | 约7T | 58.21KW | 52.21KW | G3/4”或DN20 | 7.9m*3.5m |
HBF093-24-3F | 3kg/h | 93%±3% | 24Nm3/h | 6m*2.4m*2.61m*1 | 约7.5T | 76.31KW | 67.31KW | G1”或DN25 | 8.4m*3.6m |
HBF093-32-4F | 4kg/h | 93%±3% | 32Nm3/h | 6.5m*2.4m*2.9m*1 | 约8T | 94.46KW | 82.46KW | G1”或DN25 | 8.9m*3.6m |
HBF093-40-5F | 5kg/h | 93%±3% | 40Nm3/h | 8m*2.4m*2.9m*1 | 约9T | 115.26KW | 100.26KW | G1”或DN25 | 10.4m*4.8m |
HBF093-48-6F | 6kg/h | 93%±3% | 48Nm3/h | 8m*2.4m*2.9m*1 | 约9.5T | 148.21KW | 130.21KW | G1”或DN25 | 10.4m*4.8m |
HBF093-64-8F | 8kg/h | 93%±3% | 64Nm3/h | 8.5m*2.4m*2.9m*1 | 约11T | 184.59KW | 162.09KW | G1-1/2”或DN40 | 10.9m*4.8m |
HBF093-80-10F | 10kg/h | 93%±3% | 80Nm3/h | 8m*2.4m*2.9m*2 | 约20T | 229.59KW | 199.59KW | G1-1/2”或DN40 | 10.4m*5m*2 |
